Guhring

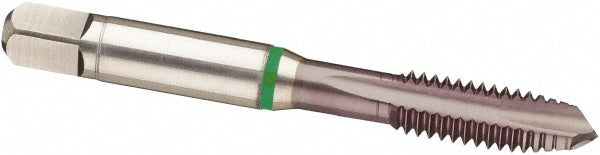

M5 x 0.80 Metric Cobalt Tap, TiCN - Guhring 9039450050000
MFR# 9039450050000Series 3945
$23.56List $30.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Guhring 9039450050000 is a Metric Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length2.3820
OversizeNo
Shank diameter0.1940
Thread directionRight Hand
Thread limitD3/D4
Thread pitch (mm)0.80
Thread size (mm)M5 x 0.80
Thread standardMetric
