Guhring

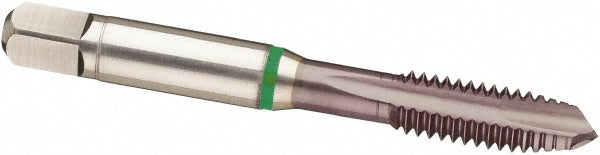

3/4-10 UNC Cobalt Tap, TiCN - Guhring 9039460190500
MFR# 9039460190500Series 3946
$75.11List $96.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTiCN
Description
The Guhring 9039460190500 is a 3/4-10 UNC Cobalt tap with a TiCN finish. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes4
Overall length4.2520
OversizeNo
Shank diameter0.5900
Threads per inch10
Thread directionRight Hand
Thread limitH5/H6
Thread size in3/4-10
Thread standardUNC
