Guhring

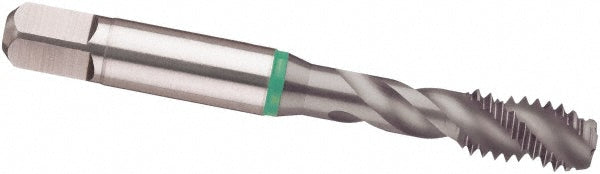

M3 x 0.50 Metric Cobalt Tap, TICN - Guhring 9039480030000
MFR# 9039480030000Series 3948
$29.56List $37.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTICN
Description
The Guhring 9039480030000 is a Metric Cobalt tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Neck length0.7090
Number of flutes3
Overall length1.9410
OversizeNo
Shank diameter0.1410
Square size0.1100
Thread directionRight Hand
Thread limitD2; D3
Thread pitch (mm)0.50
Thread size (mm)M3 x 0.50
Thread standardMetric
