Guhring

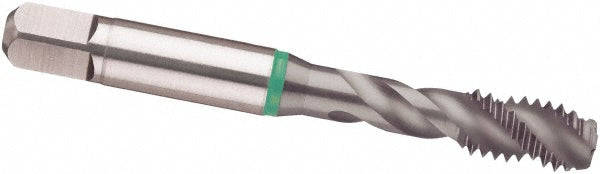

M4 x 0.70 Metric Cobalt Tap, TICN - Guhring 9039480040000
MFR# 9039480040000Series 3948
$28.30List $36.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTICN
Description
The Guhring 9039480040000 is a Metric Cobalt tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Neck length0.8270
Number of flutes3
Overall length2.1300
OversizeNo
Shank diameter0.1680
Square size0.1310
Thread directionRight Hand
Thread limitD3; D4
Thread pitch (mm)0.70
Thread size (mm)M4 x 0.70
Thread standardMetric
