Guhring

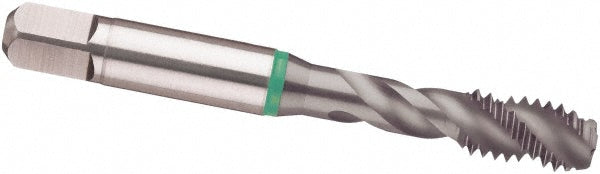

M5 x 0.80 Metric Cobalt Tap, TICN - Guhring 9039480050000
MFR# 9039480050000Series 3948
$29.63List $38.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTICN
Description
The Guhring 9039480050000 is a Metric Cobalt tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Neck length0.9450
Number of flutes3
Overall length2.3820
OversizeNo
Shank diameter0.1940
Square size0.1520
Thread directionRight Hand
Thread limitD3; D4
Thread pitch (mm)0.80
Thread size (mm)M5 x 0.80
Thread standardMetric
