Guhring

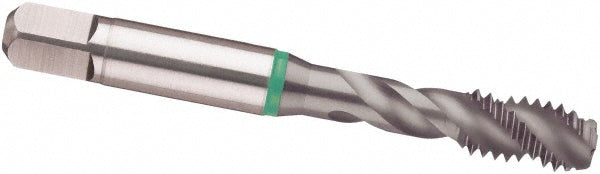

M10 x 1.50 Metric Cobalt Tap, TICN - Guhring 9039480100000
MFR# 9039480100000Series 3948
$40.66List $52.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTICN
Description
The Guhring 9039480100000 is a Metric Cobalt tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Neck length1.4560
Number of flutes3
Overall length2.9410
OversizeNo
Shank diameter0.3810
Square size0.2860
Thread directionRight Hand
Thread limitD4; D5
Thread pitch (mm)1.50
Thread size (mm)M10 x 1.50
Thread standardMetric
