Guhring

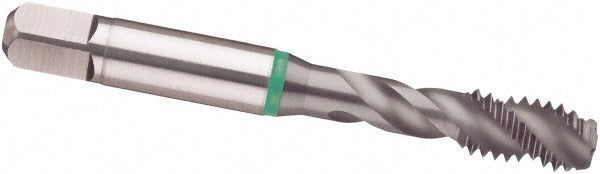

M20 x 2.50 Metric Cobalt Tap, TICN - Guhring 9039480200000
MFR# 9039480200000Series 3948
$118.51List $152.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTICN
Description
The Guhring 9039480200000 is a Metric Cobalt tap with a TICN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Number of flutes4
Overall length4.4690
OversizeNo
Shank diameter0.6520
Square size0.4890
Thread directionRight Hand
Thread limitD6; D7
Thread pitch (mm)2.50
Thread size (mm)M20 x 2.50
Thread standardMetric
