Guhring
1/4-20 UNC Cobalt Tap, TICN - Guhring 9039490063500
MFR# 9039490063500Series 3949
$29.63List $38.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTICN
Description

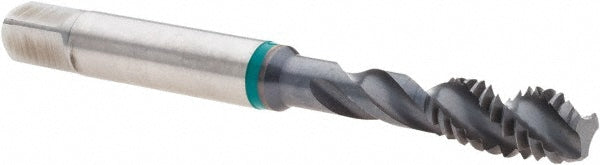

The Guhring 9039490063500 is a 1/4-20 UNC Cobalt tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationCase Hardening Steel; Free Cutting Steel; Heat Treatable Steel; Nitriding Steel; Spheroidal Graphite Iron; Structural Steel
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size0.1910
Threads per inch20
Thread directionRight Hand
Thread limitH4; H5
Thread size in1/4-20
Thread standardUNC
