Guhring

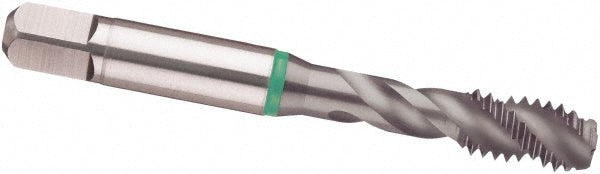

#2-64 UNF Cobalt Tap, TiCN - Guhring 9039500021840
MFR# 9039500021840Series 3950
$26.95List $34.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#2-64
CoatingTiCN
Description
The Guhring 9039500021840 is a #2-64 UNF Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Unalloyed Steel
Neck length0.4410
Number of flutes3
Overall length1.7510
OversizeNo
Primary workpiece materialSteel
Shank diameter0.1410
Square size0.1100
Threads per inch64
Thread directionRight Hand
Thread limitH2; H3
Thread size in#2-64
Thread standardUNF
