Guhring

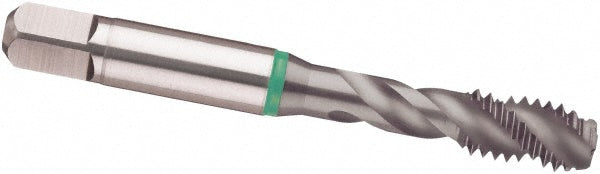

7/16-20 UNF Cobalt Tap, TICN - Guhring 9039500111130
MFR# 9039500111130Series 3950
$49.47List $62.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingTICN
Description
The Guhring 9039500111130 is a 7/16-20 UNF Cobalt tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Number of flutes3
Overall length3.1570
OversizeNo
Shank diameter0.3230
Square size0.2420
Threads per inch20
Thread directionRight Hand
Thread limitH4; H5
Thread size in7/16-20
Thread standardUNF
