Guhring

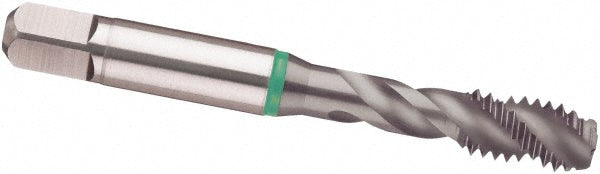

9/16-18 UNF Cobalt Tap, TICN - Guhring 9039500142880
MFR# 9039500142880Series 3950
$53.10List $66.92
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size9/16-18
CoatingTICN
Description
The Guhring 9039500142880 is a 9/16-18 UNF Cobalt tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Number of flutes3
Overall length3.5910
OversizeNo
Shank diameter0.4290
Square size0.3220
Threads per inch18
Thread directionRight Hand
Thread limitH4; H5
Thread size in9/16-18
Thread standardUNF
