Guhring

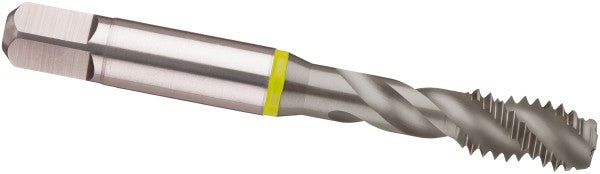

M2 x 0.40 Metric Cobalt Tap, MolyGlide - Guhring 9039630020000
MFR# 9039630020000Series 3963
$32.40List $41.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingMolyGlide
Description
The Guhring 9039630020000 is a Metric Cobalt tap with a MolyGlide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Neck length0.4410
Number of flutes3
Overall length1.7520
OversizeNo
Shank diameter0.1410
Square size0.1100
Thread directionRight Hand
Thread limitD2; D3
Thread pitch (mm)0.40
Thread size (mm)M2 x 0.40
Thread standardMetric
