Guhring

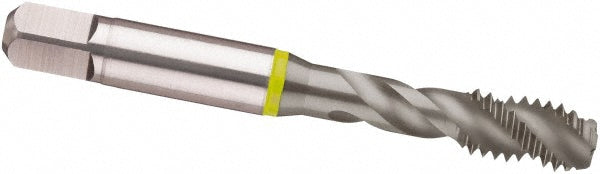

1/4-20 UNC Cobalt Tap, MolyGlide - Guhring 9039640063500
MFR# 9039640063500Series 3964
$25.23List $31.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingMolyGlide
Description
The Guhring 9039640063500 is a 1/4-20 UNC Cobalt tap with a MolyGlide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size0.1910
Threads per inch20
Thread directionRight Hand
Thread limitH4; H5
Thread size in1/4-20
Thread standardUNC
