Guhring
5/16-18 UNC Cobalt Tap, MolyGlide - Guhring 9039700079380
MFR# 9039700079380Series 3970
$30.68List $38.67
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-18
CoatingMolyGlide
Description

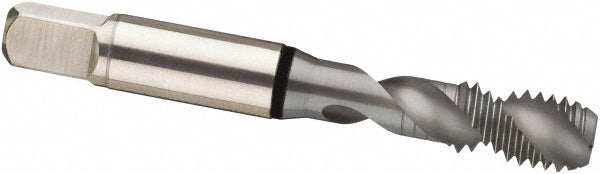

The Guhring 9039700079380 is a 5/16-18 UNC Cobalt tap with a MolyGlide finish. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum & Aluminum Alloy
Neck length1.3770
Number of flutes2
Overall length2.7200
OversizeNo
Shank diameter0.3180
Square size0.2380
Threads per inch18
Thread directionRight Hand
Thread limitH4; H5
Thread size in5/16-18
Thread standardUNC
