Guhring

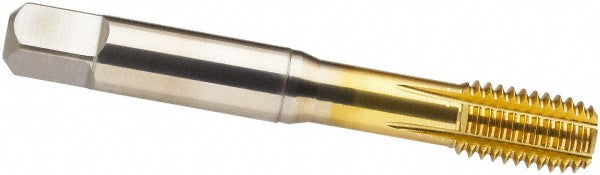

M8x1 Metric Fine High-Speed Steel-E-CO Tap, TiN - Guhring 9039750080050
MFR# 9039750080050Series 3975
$43.48List $54.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9039750080050 is a Metric Fine High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length2.7210
Shank diameter0.3180
Square size0.2441
Tapping depth1.3780
Thread directionRight Hand
Thread length0.6693
Thread limitD7; D8
Thread size (mm)M8x1
Thread standardMetric Fine
