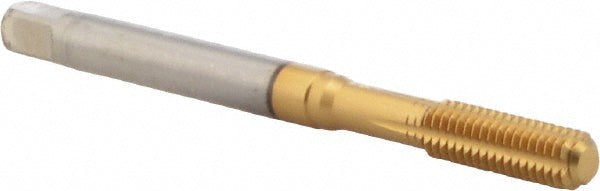

M5x0.8 Metric High-Speed Steel-E-CO Tap, TiN - Guhring 9039790050000
MFR# 9039790050000Series 3979
$31.58List $39.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9039790050000 is a Metric High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length2.3820
Shank diameter0.1940
Square size0.1520
Tapping depth0.9449
Thread directionRight Hand
Thread length0.5118
Thread limitD7; D8
Thread size (mm)M5x0.8
Thread standardMetric
