Guhring

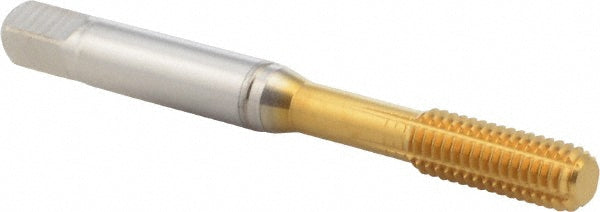

M6x1 Metric High-Speed Steel-E-CO Tap, TiN - Guhring 9039790060000
MFR# 9039790060000Series 3979
$38.06List $48.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9039790060000 is a Metric High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length in2-1/2
Shank diameter0.2550
Square size0.1929
Tapping depth1.1811
Thread directionRight Hand
Thread length0.6299
Thread limitD8; D9
Thread size (mm)M6x1
Thread standardMetric
