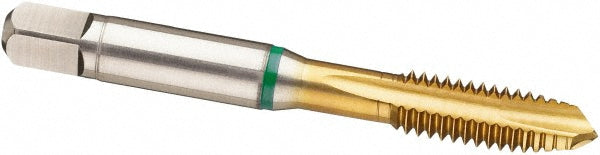

#10-32 UNC Cobalt Tap, TiN - Guhring 9039830048260
MFR# 9039830048260Series 3983
$22.09List $28.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingTiN
Description
The Guhring 9039830048260 is a #10-32 UNC Cobalt tap with a TiN finish. 3 flutes.
Specifications
Amount oversize0.0030
ApplicationThrough-Hole Threading
ChamferPlug
Class of fitH7
Coating finishTiN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length2.3820
OversizeYes
Shank diameter0.1940
Threads per inch32
Thread directionRight Hand
Thread limitH7
Thread size in#10-32
Thread standardUNC
