Guhring

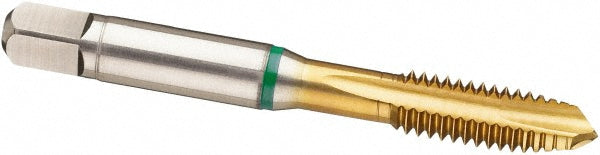

1/4-28 UNC Cobalt Tap, TiN - Guhring 9039830063500
MFR# 9039830063500Series 3983
$22.93List $29.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTiN
Description
The Guhring 9039830063500 is a 1/4-28 UNC Cobalt tap with a TiN finish. 3 flutes.
Specifications
Amount oversize0.0030
ApplicationThrough-Hole Threading
ChamferPlug
Class of fitH7
Coating finishTiN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length in2-1/2
OversizeYes
Shank diameter0.2550
Threads per inch28
Thread directionRight Hand
Thread limitH7
Thread size in1/4-28
Thread standardUNC
