Guhring

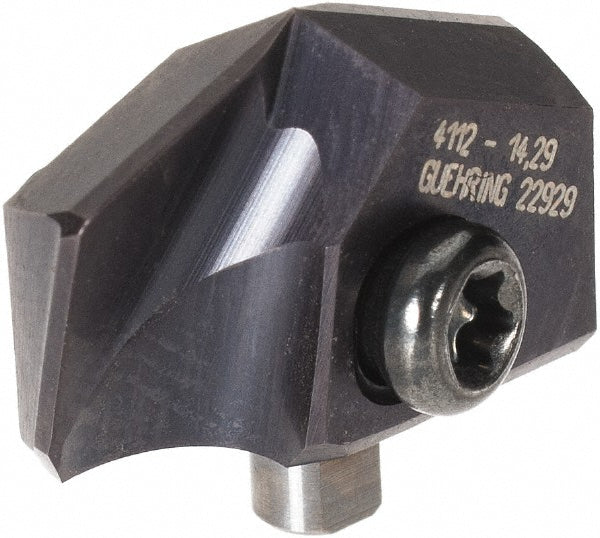

Carbide Insert, Grade DK460UF, Nano-FIREX - Guhring 9041120142900
MFR# 9041120142900Series 4112
$130.90List $167.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDK460UF
CoatingNano-FIREX
Description
The Guhring 9041120142900 is a carbide indexable insert, grade DK460UF, Nano-FIREX coated. Suited for steel.
Specifications
Coating finishNano-FIREX
Coating processPVD
Coolant throughNo
Functional length (mm)9.60
Height0.3780
Insert geometry2-Facet
Insert seat size140
Manufacturer gradeDK460UF
Material gradeK20/K40
Point angle140
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel
Tip materialSolid Carbide
