Guhring
Carbide Insert, Grade K/P, nano-FIREX - Guhring 9041120185000
MFR# 9041120185000Series 4112
$181.34List $232.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeK/P
Coatingnano-FIREX
Description

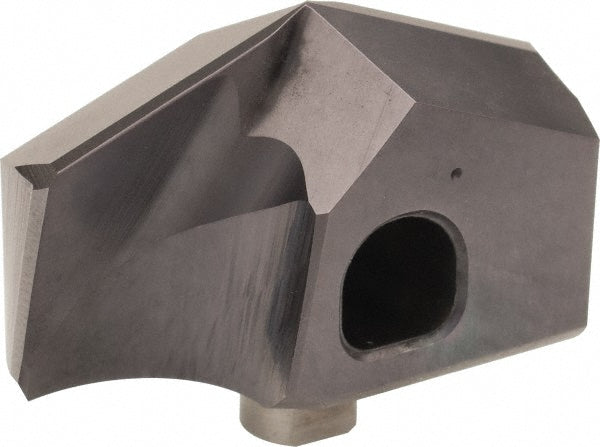

The Guhring 9041120185000 is a carbide indexable insert, grade K/P, nano-FIREX coated. Suited for steel.
Specifications
Coating finishnano-FIREX
Coating processPVD
Coolant throughNo
Cutting diameter0.7283
Drill point angle140
Flute length (mm)9.00
Flute typeHelical
Functional length0.3625
Height (mm)13.00
Included angle degree140
Insert geometry2-Facet
Insert holding methodClamp; Screw
Insert seat size185
Manufacturer gradeK/P
Number of flutes2
Overall length projection0.4964
Point typeTwo Facet
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron
Spiral typeRegular Spiral
Style4112
Tip materialSolid Carbide
Web thinningWeb-Thinned
