Guhring

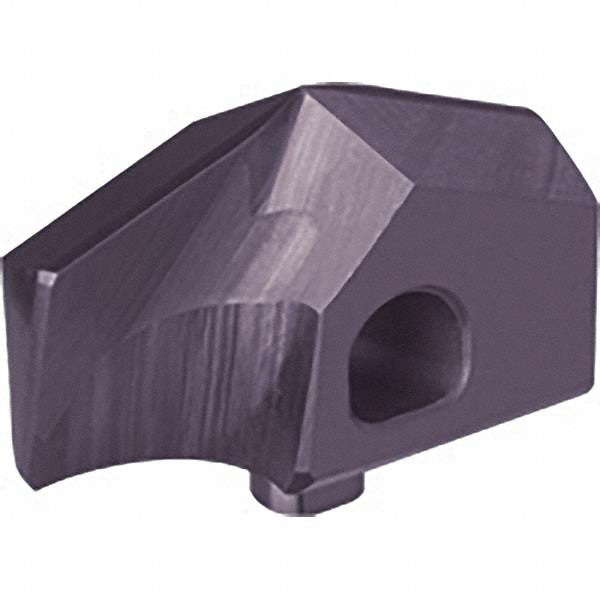

Carbide Insert, Grade DK460UF, nano-FIREX - Guhring 9041120215000
MFR# 9041120215000Series 4112
$196.80List $252.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeDK460UF
Coatingnano-FIREX
Description
The Guhring 9041120215000 is a carbide indexable insert, grade DK460UF, nano-FIREX coated. Suited for steel.
Specifications
Coating finishnano-FIREX
Coating processPVD
Coolant throughNo
Cutting diameter0.8594
Drill point angle140
Flute length (mm)10.00
Flute typeHelical
Functional length0.3940
Height0.5472
Included angle degree140
Insert geometry2-Facet
Insert holding methodClamp; Screw
Insert seat size215
Manufacturer gradeDK460UF
Material gradeK20/K40
Number of flutes2
Overall length projection0.5477
Point typeTwo Facet
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron
Spiral typeRegular Spiral
Style4112
Tip materialSolid Carbide
Web thinningWeb-Thinned
