Guhring
Carbide Insert, Grade K/P, nano-Si - Guhring 9041130175000
MFR# 9041130175000Series 4113
$171.75List $220.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeK/P
Coatingnano-Si
Description

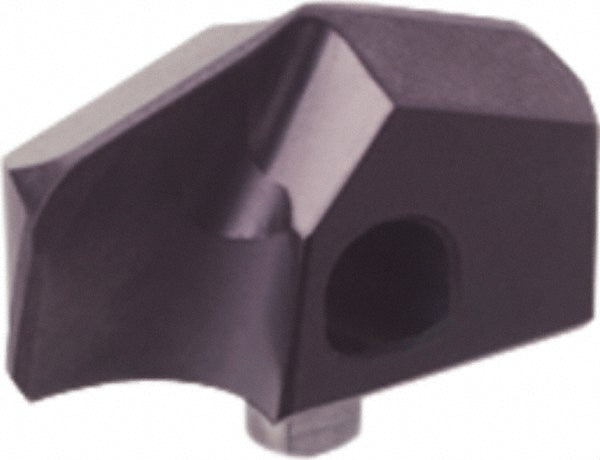

The Guhring 9041130175000 is a carbide indexable insert, grade K/P, nano-Si coated. Suited for cast iron.
Specifications
Coating finishnano-Si
Coating processPVD
Coolant throughNo
Cutting diameter (mm)17.00
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3073
Height (mm)11.00
Included angle degree140
Insert geometry2-Facet
Insert holding methodClamp; Screw
Insert seat size175
Manufacturer gradeK/P
Number of flutes2
Overall length projection0.4334
Point typeTwo Facet
Primary workpiece materialCast Iron
Secondary workpiece materialSteel
Spiral typeRegular Spiral
Style4113
Tip materialSolid Carbide
Web thinningWeb-Thinned
