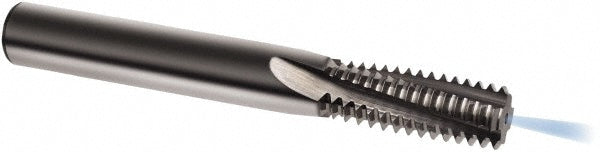

Helical Flute Thread Mills - Guhring 9041360048260
MFR# 9041360048260Series 4136
$221.07List $283.54
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
Description
The Guhring 9041360048260 helical flute thread mills. Series 4136.
Specifications
Coolant throughYes
Cutting diameter0.1496
Flute directionRight Hand
Length of cut0.4528
MaterialSolid Carbide
Minimum nominal diameter in0.1610
Number of flutes3
Overall length (mm)54.00
Shank diameter (mm)6.00
Teeth per inch32
Thread size in#10-32
Thread standardUNF
Thread typeInternal
