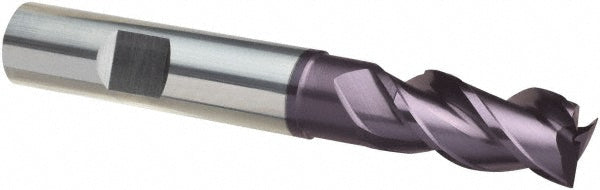

1/2" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9042540127000
MFR# 9042540127000Series 4254
$98.28List $126.05
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9042540127000 is a 1/2 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for stainless steel, steel. 1-1/4 length of cut, 3-1/2 overall length. Series 4254.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle41; 43; 45
Length of cut in1-1/4
Length typeRegular
Material gradeProprietary
Maximum helix angle45
Mill diameter in1/2
Mill diameter toleranceh10
Minimum helix angle41
Number of flutes3
Overall length in3-1/2
Primary workpiece materialStainless Steel; Steel
Secondary workpiece materialCast Iron
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
