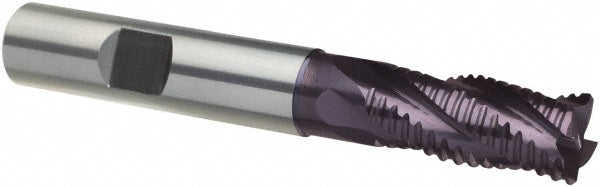

0.7500" 4-Flute Solid Carbide Roughing End Mill, FIREX - Guhring 9042560190500

Guhring

0.7500" 4-Flute Solid Carbide Roughing End Mill, FIREX - Guhring 9042560190500

MFR# 9042560190500Series 4256

$480.95List $616.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingFIREX

Description

The Guhring 9042560190500 is a 0.7500 4-flute Solid Carbide (Proprietary) roughing end mill with a FIREX finish for longer tool life. Series 4256.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut2.2500
Length typeLong
Material gradeProprietary
Maximum helix angle32
Mill diameter0.7500
Mill diameter frac in3/4
Mill diameter toleranceh10
Minimum helix angle30
Number of flutes4
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
