Guhring

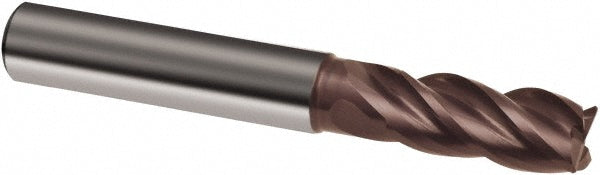

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9042580190500

MFR# 9042580190500Series 4258

$434.30List $557.01 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

Coatingnano-A

Description

The Guhring 9042580190500 is a 3/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-A finish for longer tool life. 2-1/4 length of cut, 5 overall length. Series 4258.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnano-A

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle36; 38

Length of cut in2-1/4

Length typeLong

Material gradeProprietary

Mill diameter in3/4

Number of flutes4

Overall length in5

Shank diameter in3/4

Single or double endSingle

Variable helixYes

Variable indexNo
