Guhring

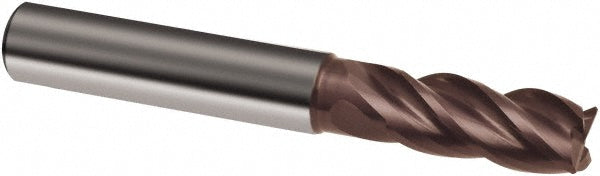

1/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nano-A - Guhring 9042600063500
MFR# 9042600063500Series 4260
$60.43List $77.51
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
Coatingnano-A
Description
The Guhring 9042600063500 is a 1/4 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. 3/4 length of cut, 3-1/4 overall length. Series 4260.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishnano-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle36; 38
Length of cut in3/4
Length typeLong
Material gradeProprietary
Mill diameter in1/4
Mill diameter toleranceh10
Number of flutes4
Overall length in3-1/4
Primary workpiece materialStainless Steel; Steel
Reach length1.7500
Secondary workpiece materialCast Iron
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
