Guhring

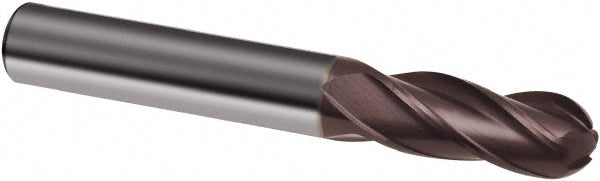

1/8" 4-Flute Solid Carbide Ball End Mill, nano-A - Guhring 9042610031700
MFR# 9042610031700Series 4261
$44.68List $57.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
Coatingnano-A
Description
The Guhring 9042610031700 is a 1/8 4-flute Solid Carbide (Ultra Fine Grain) ball end mill with a nano-A finish for longer tool life. Suited for stainless steel, steel. 1/2 length of cut, 2 overall length. Series 4261.
Specifications
ChipbreakerNo
Coating finishnano-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle36; 38
Helix styleVariable
Length of cut in1/2
Length typeRegular
Material gradeUltra Fine Grain
Mill diameter in1/8
Mill diameter toleranceh10
Number of flutes4
Overall length in2
Primary workpiece materialStainless Steel; Steel
Secondary workpiece materialCast Iron
Shank diameter in1/8
Shank diameter toleranceh6
Single or double endSingle
Variable helixYes
Variable indexNo
