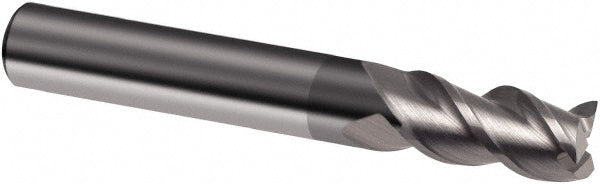

1/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9042650063500

Name: 1/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9042650063500
Brand: Guhring
SKU: 9042650063500
Price: 33.54 USD
Availability: LimitedAvailability

MFR# 9042650063500Series 4265

$33.54List $42.27 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9042650063500 is a 1/4 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 3/4 length of cut, 2-1/2 overall length. Series 4265.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle39; 40; 41

Length of cut in3/4

Length typeRegular

Material gradeProprietary

Maximum helix angle41

Mill diameter in1/4

Mill diameter toleranceh10

Minimum helix angle39

Number of flutes3

Overall length in2-1/2

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
