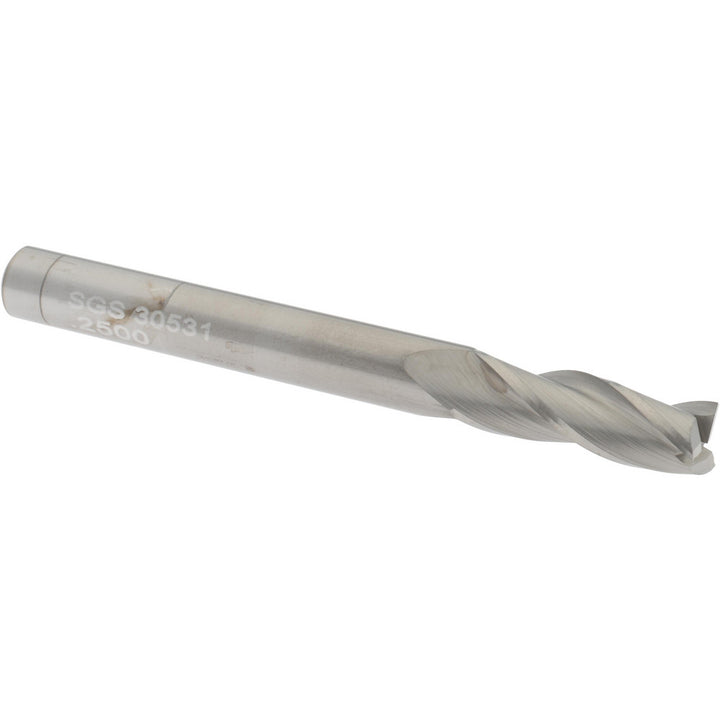

1/4" 3-Flute Solid Carbide Square End Mill - SGS 30531

SGS

1/4" 3-Flute Solid Carbide Square End Mill - SGS 30531

MFR# 30531Series 5

$23.85List $30.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide

Description

The SGS 30531 is a 1/4 3-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 5.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance-0.001/-0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
