5/8" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9042650158700

Guhring

5/8" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9042650158700

MFR# 9042650158700Series 4265

$241.65List $304.54 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

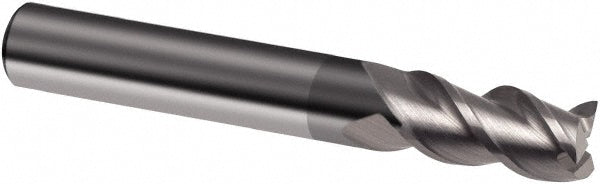

The Guhring 9042650158700 is a 5/8 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 4265.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle39; 40; 41
Length of cut in1-1/4
Length typeRegular
Material gradeProprietary
Mill diameter in5/8
Mill diameter toleranceh10
Number of flutes3
Overall length in3-1/2
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexNo
