Guhring

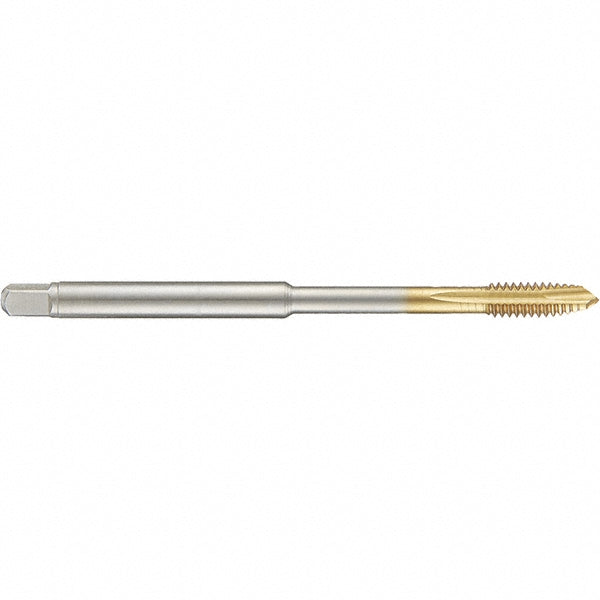

1/4-28 UNF High-Speed Steel Tap, TiN - Guhring 9042820063500
MFR# 9042820063500Series 4282
$37.35List $47.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTiN
Description
The Guhring 9042820063500 is a 1/4-28 UNF High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Neck length in2
Number of flutes3
Overall length4.0000
Shank diameter0.2550
Threads per inch28
Thread directionRight Hand
Thread limitH3/H4
Thread size in1/4-28
Thread standardUNF
