Guhring

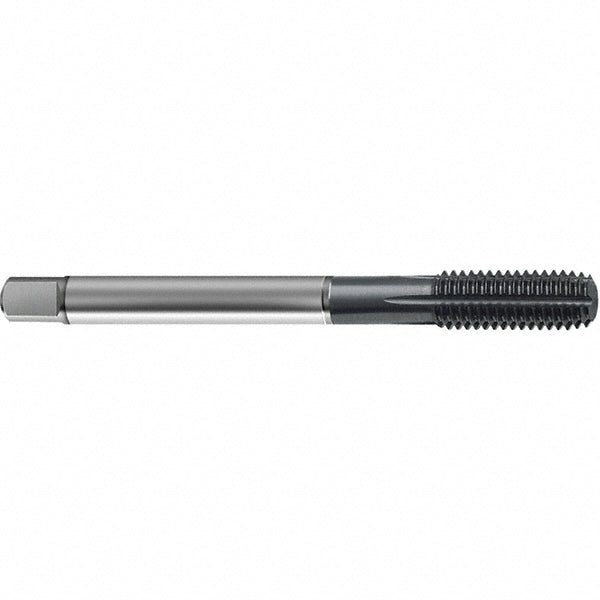

#6-32 UNC High-Speed Steel-E-PM Tap, TiCN - Guhring 9043770035050
MFR# 9043770035050Series 4377
$46.36List $59.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#6-32
CoatingTiCN
Description
The Guhring 9043770035050 is a #6-32 UNC High-Speed Steel-E-PM tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length2.2047
Shank diameter0.1410
Square size0.1100
Tapping depth0.7087
Thread directionRight Hand
Thread length0.4331
Thread limitH5; H6
Thread size in#6-32
Thread standardUNC
