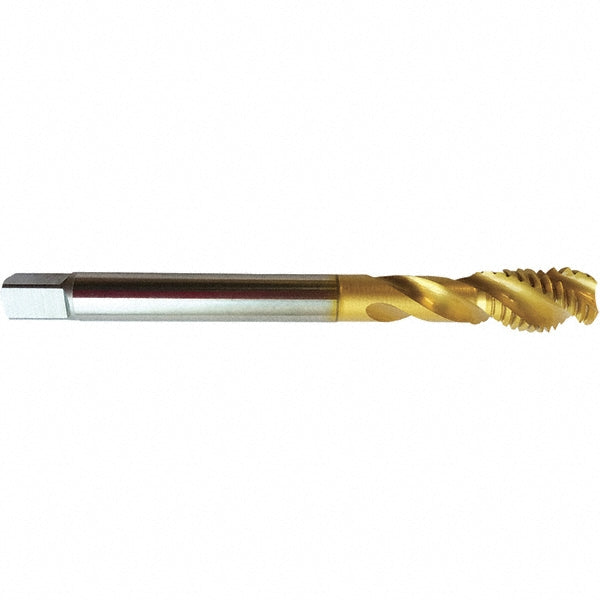

3/8-16 UNC High Speed Steel Tap, TIN - Guhring 9043920095250
MFR# 9043920095250Series 4392
$46.15List $58.16
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTIN
Description
The Guhring 9043920095250 is a 3/8-16 UNC High Speed Steel tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh Speed Steel
Material applicationAlloyed Steel; Stainless Steel
Neck length1.4560
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter8.0772
Shank length2.4810
Square size0.2860
Tapping depth1.4560
Threads per inch16
Thread directionRight Hand
Thread limitH6; H7
Thread size in3/8-16
Thread standardUNC
