Guhring

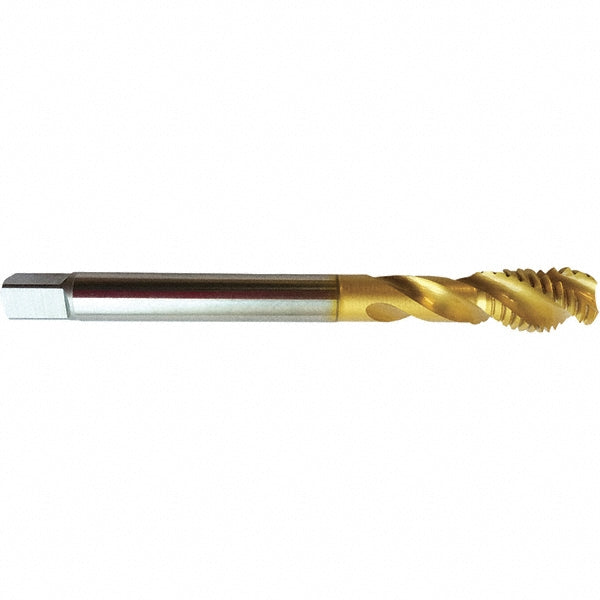

3/4-16 UNF High-Speed Steel Tap, TiN - Guhring 9043930190500
MFR# 9043930190500Series 4393
$118.16List $151.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingTiN
Description
The Guhring 9043930190500 is a 3/4-16 UNF High-Speed Steel tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle40
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Stainless Steel
Number of flutes4
Overall length4.3307
OversizeNo
Shank diameter0.5900
Square size0.4420
Threads per inch16
Thread directionRight Hand
Thread limitH6; H7
Thread size in3/4-16
Thread standardUNF
