Guhring

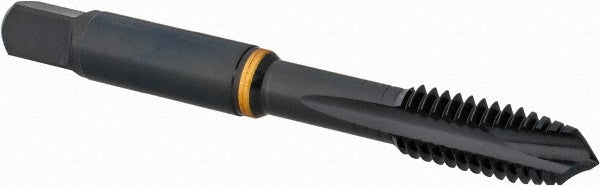

5/16-18 UNC Cobalt Spiral Point Tap, Oxide - Guhring 9044023079380
MFR# 9044023079380Series 4402
$12.97List $16.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingOxide
Description
The Guhring 9044023079380 is a 5/16-18 UNC Cobalt Spiral Point tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B/3B
Coating finishOxide
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Neck length0.6680
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
StyleSpiral Point
Threads per inch18
Thread directionRight Hand
Thread length0.7090
Thread limitH3
Thread size in5/16-18
Thread standardUNC
