Guhring

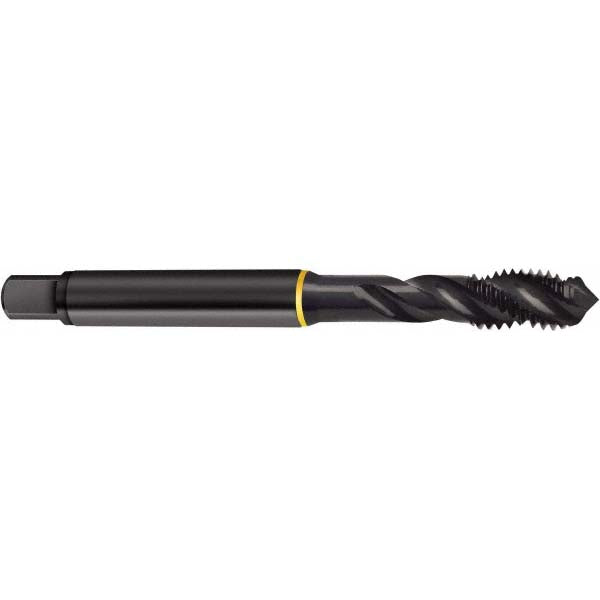

M10x1 Metric Fine Cobalt Tap, Oxide - Guhring 9044130100050
MFR# 9044130100050Series 4413
$33.16List $41.78
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingOxide
Description
The Guhring 9044130100050 is a Metric Fine Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.9440
Number of flutes3
Overall length2.9410
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3810
Square size0.2860
Tapping depth1.3770
Thread directionRight Hand
Thread length0.4330
Thread limitD5
Thread pitch (mm)1.00
Thread size (mm)M10x1
Thread standardMetric Fine
