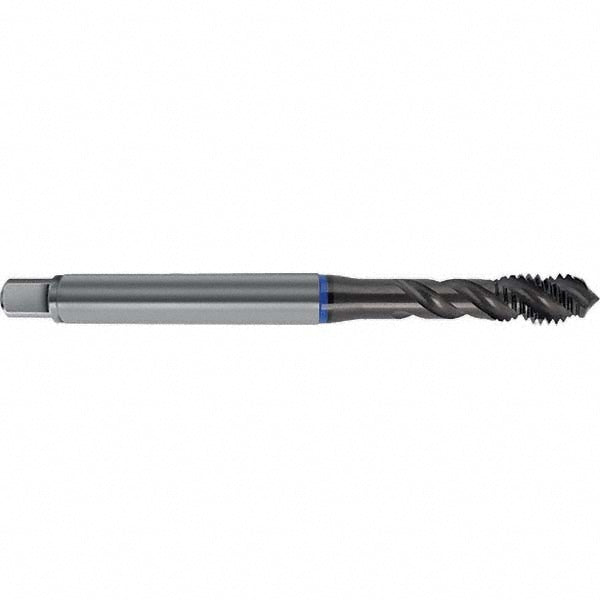

M5x0.8 Metric High-Speed Steel-E Tap, TiAlN - Guhring 9046270050000
MFR# 9046270050000Series 4627
$49.86List $63.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiAlN
Description
The Guhring 9046270050000 is a Metric High-Speed Steel-E tap with a TiAlN finish. 3 flutes.
Specifications
ChamferSemi-Bottoming
Class of fit6H + 0.1
Coating finishTiAlN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialHigh-Speed Steel-E
Number of flutes3
Overall length (mm)70.00
OversizeYes
Shank diameter (mm)6.00
Square size (mm)4.90
Tapping depth (mm)25.00
Thread directionRight Hand
Thread limitD11; D12
Thread size (mm)M5x0.8
Thread standardMetric
