Guhring

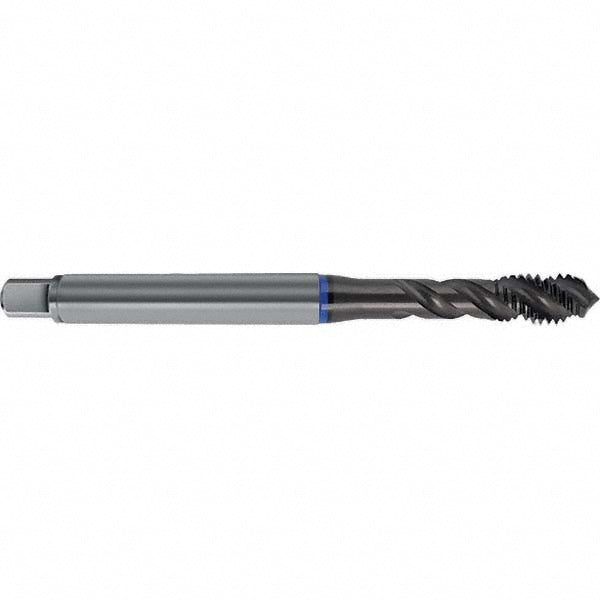

M6x1 Metric Tap, TiAlN - Guhring 9046270060000
MFR# 9046270060000Series 4627
$50.79List $65.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiAlN
Description
The Guhring 9046270060000 is a Metric tap with a TiAlN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferSemi-Bottoming
Class of fit6H + 0.1
Coating finishTiAlN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Material applicationAluminum; Cast Iron; Nickel Titanium Alloy; Stainless Steel; Steel
Neck length (mm)30.00
Number of flutes3
Overall length (mm)80.00
OversizeYes
Shank diameter (mm)6.00
Square size (mm)4.90
Tapping depth (mm)30.00
Thread directionRight Hand
Thread length (mm)11.00
Thread limitD12; D13
Thread pitch (mm)1.00
Thread size (mm)M6x1
Thread standardMetric
