Guhring

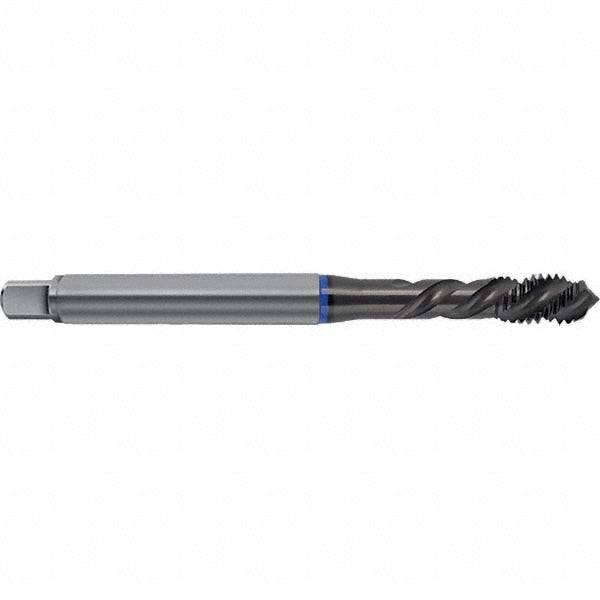

M16x2 Metric Tap, TiAlN - Guhring 9046290160000
MFR# 9046290160000Series 4629
$137.95List $173.86
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiAlN
Description
The Guhring 9046290160000 is a Metric tap with a TiAlN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferSemi-Bottoming
Class of fit6HX
Coating finishTiAlN
Coolant throughNo
Flute directionLeft Hand
Flute styleSpiral
Helix angle45
Material applicationAluminum; Cast Iron; Nickel Titanium Alloy; Stainless Steel; Steel
Neck length (mm)54.00
Number of flutes4
Overall length (mm)110.00
OversizeNo
Shank diameter (mm)12.00
Square size (mm)9.00
Thread directionLeft Hand
Thread length (mm)20.00
Thread limitD9; D10
Thread pitch (mm)2.00
Thread size (mm)M16x2
Thread standardMetric
