Guhring

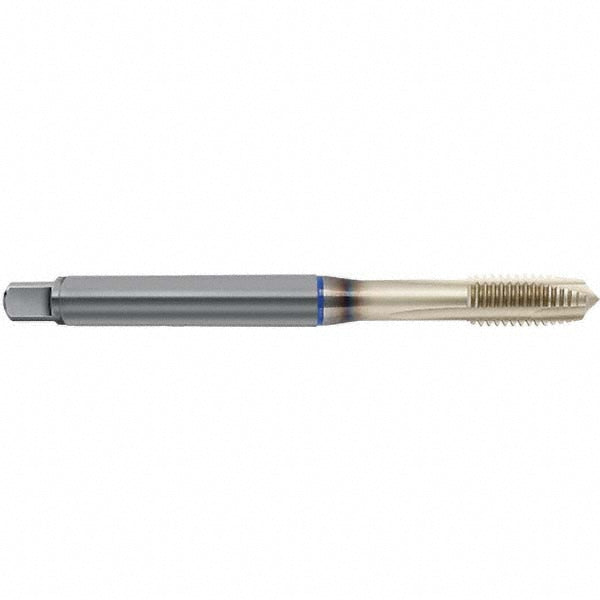

M12 x 1.75 Metric Tap, Sirius - Guhring 9046440120000
MFR# 9046440120000Series 4644
$80.07List $102.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingSirius
Description
The Guhring 9046440120000 is a Metric tap with a Sirius finish. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6HX
Coating finishSirius
Coolant throughNo
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Special & Super Titanium Alloy; Spheroidal Iron; Stainless Steel; Steel
Neck length (mm)25.00
Number of flutes4
Overall length (mm)110.00
OversizeNo
Shank diameter (mm)9.00
Square size (mm)7.00
Thread directionLeft Hand
Thread length (mm)24.00
Thread limitD8/D9
Thread pitch (mm)1.75
Thread size (mm)M12 x 1.75
Thread standardMetric
