Guhring

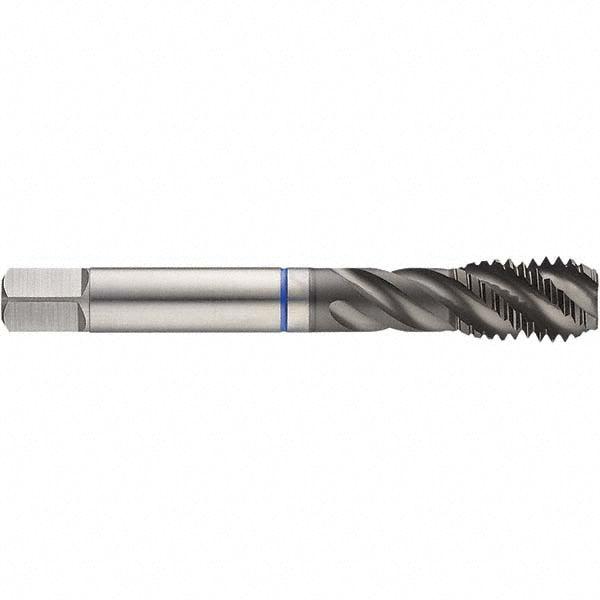

1/4-20 UNC Tap, Slidur - Guhring 9046520063500
MFR# 9046520063500Series 4652
$33.57List $43.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingSlidur
Description
The Guhring 9046520063500 is a 1/4-20 UNC tap with a Slidur finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferSemi-Bottoming
Class of fit2BX
Coating finishSlidur
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Material applicationAluminum; Cast Iron; Nickel Titanium Alloy; Stainless Steel; Steel
Neck length1.1810
Number of flutes3
Overall length (mm)80.00
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.1810
Threads per inch20
Thread directionRight Hand
Thread limitH5; H6
Thread size in1/4-20
Thread standardUNC
