Guhring

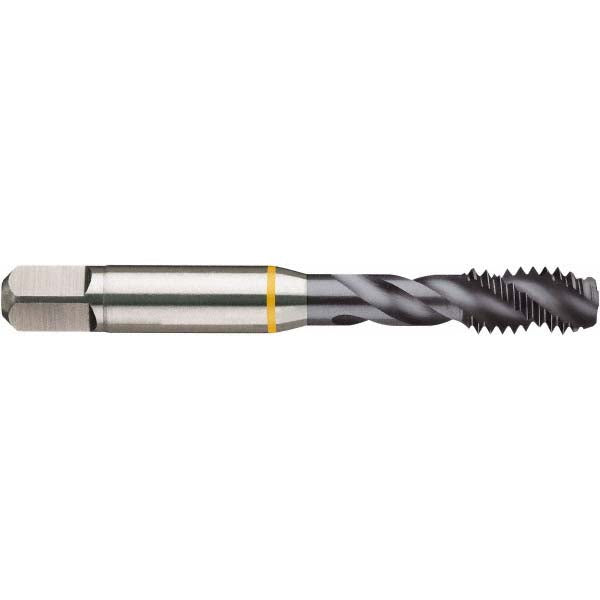

#10-24 UNC Cobalt Tap, Ignator - Guhring 9048813048260
MFR# 9048813048260Series 4881
$17.16List $22.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingIgnator
Description
The Guhring 9048813048260 is a #10-24 UNC Cobalt tap with a Ignator finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishIgnator
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.5120
Number of flutes3
Overall length2.3820
OversizeNo
Shank diameter0.1940
Square size0.1520
Tapping depth0.9450
Threads per inch24
Thread directionRight Hand
Thread length0.4330
Thread limitH3
Thread pitch0.0417
Thread size in#10-24
Thread standardUNC
