Guhring

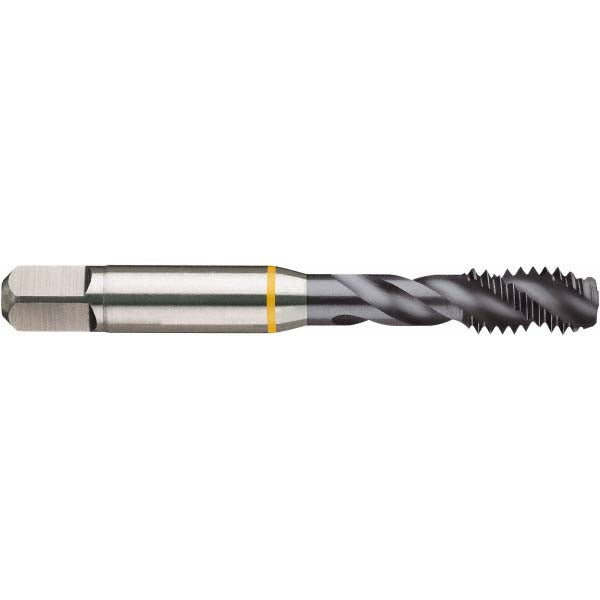

#8-32 UNC Cobalt Tap, Proprietary - Guhring 9048815041660
MFR# 9048815041660Series 4881
$17.16List $22.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingProprietary
Description
The Guhring 9048815041660 is a #8-32 UNC Cobalt tap with a Proprietary finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.5130
Number of flutes3
Overall length2.1300
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.1680
Square size0.1310
Tapping depth0.8270
Threads per inch32
Thread directionRight Hand
Thread length0.3140
Thread limitH5
Thread pitch0.0313
Thread size in#8-32
Thread standardUNC
