Guhring

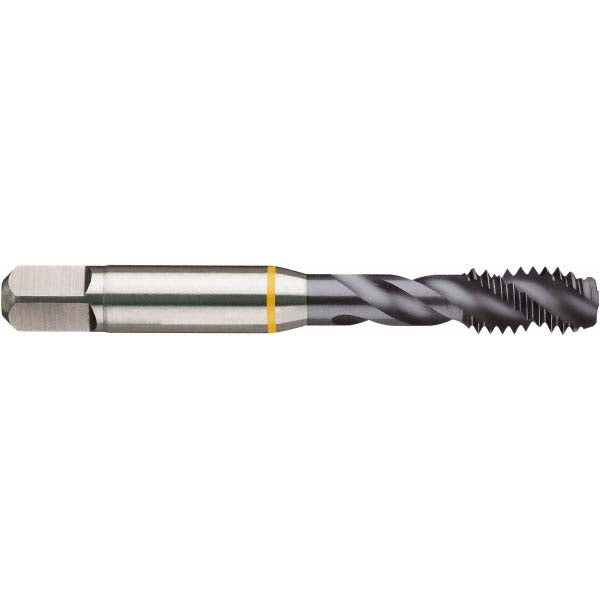

5/16-18 UNC Cobalt Tap, Ignator - Guhring 9048815079380
MFR# 9048815079380Series 4881
$22.94List $29.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingIgnator
Description
The Guhring 9048815079380 is a 5/16-18 UNC Cobalt tap with a Ignator finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishIgnator
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.8260
Number of flutes3
Overall length2.7200
OversizeNo
Shank diameter0.3180
Square size0.2380
Tapping depth1.3770
Threads per inch18
Thread directionRight Hand
Thread length0.5510
Thread limitH5
Thread pitch0.0556
Thread size in5/16-18
Thread standardUNC
