Guhring

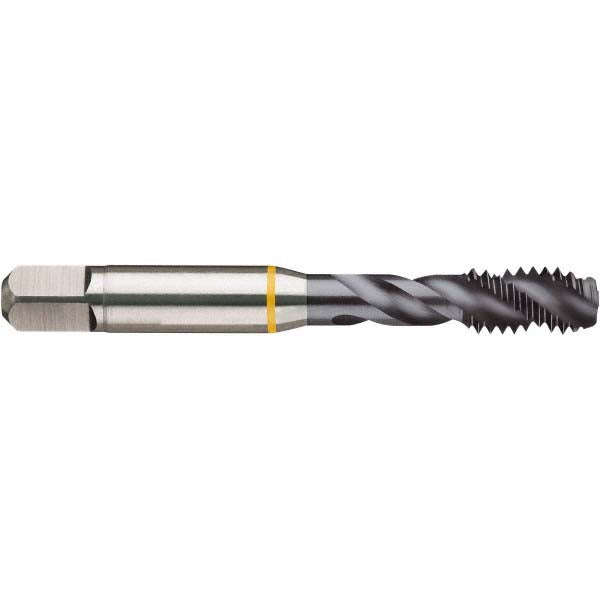

M8x1 Metric Fine Cobalt Tap, Ignator - Guhring 9048840080050
MFR# 9048840080050Series 4884
$26.41List $33.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingIgnator
Description
The Guhring 9048840080050 is a Metric Fine Cobalt tap with a Ignator finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishIgnator
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Alloy Tool Steel; Aluminum Alloy; Case-Hardened Steel; Cast Iron; Ductile Iron; Free-Cutting Steel; Heat-Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel
Neck length0.9440
Number of flutes3
Overall length2.7200
OversizeNo
Shank diameter0.3180
Square size0.2380
Tapping depth1.3770
Thread directionRight Hand
Thread length0.4330
Thread limitD5
Thread pitch (mm)1.00
Thread size (mm)M8x1
Thread standardMetric Fine
