Guhring

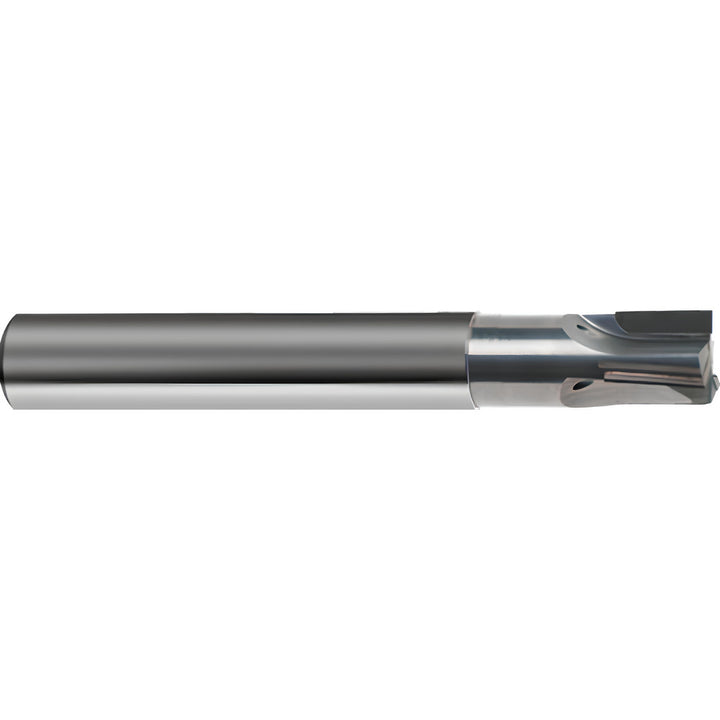

0.7874" 3-Flute Polycrystalline Diamond Corner Radius End Mill - Guhring 9054960200010
MFR# 9054960200010Series 5496
$1,658.74List $2,127.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialPolycrystalline Diamond
CoatingUncoated
Description
The Guhring 9054960200010 is a 0.7874 3-flute Polycrystalline Diamond corner radius end mill. Suited for non-ferrous metal. Series 5496.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishUncoated
Coolant throughYes
Corner radius (mm)0.10
Corner radius tolerance-0.05 to 0.05 mm
Cutting directionRight Hand
End mill materialPolycrystalline Diamond
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleLow
Length of cut0.5625
Length typeLong
Material applicationNon-Ferrous Metal; Other Non-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter0.7874
Mill diameter tolerance-0.02 to 0.02 mm
Number of flutes3
Overall length (mm)150.00
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length (mm)50.00
Shank diameter (mm)20.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
