Guhring

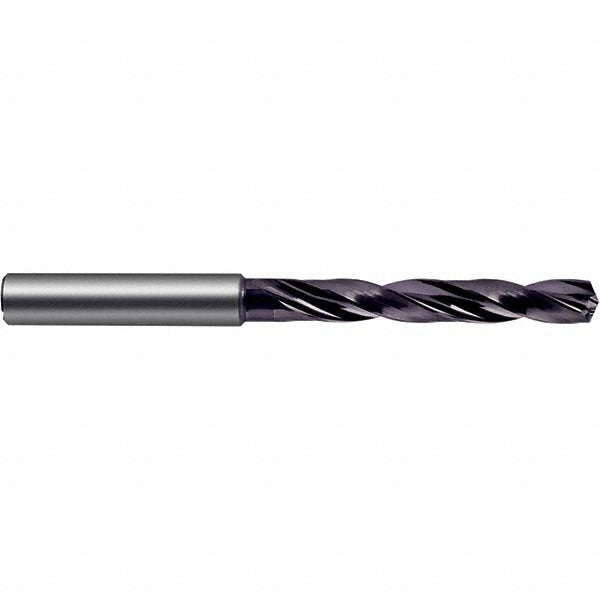

0.4213" Solid Carbide Drill Bit, nano-FIREX, 140° point - Guhring 9054980107000
MFR# 9054980107000
$380.58List $488.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9054980107000 is a 0.4213" Solid Carbide drill bit with a nano-FIREX finish, 140° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit finish coatingnano-FIREX
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4213
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length (mm)71.00
Flute typeSpiral
Maximum drilling depth (mm)54.95
Number of flutes2
Overall length (mm)118.00
Point typeCone Relief
Shank diameter (mm)12.00
Shank length (mm)45.00
Shank typeStraight-Cylindrical
Spiral typeRegular
