Guhring

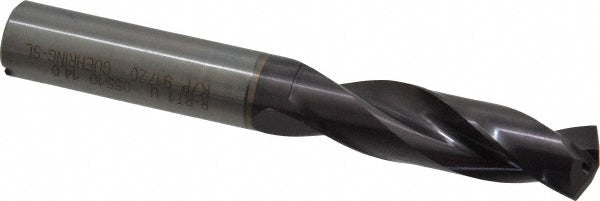

0.5512" Solid Carbide Drill Bit, FIREX, 140° point - Guhring 9055100140000
MFR# 9055100140000Series 5510
$475.47List $599.21
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingFIREX
Description
The Guhring 9055100140000 is a 0.5512" Solid Carbide drill bit with a FIREX finish, 140° point. Suited for brass, cast iron, hardened materials, nickel alloy, stainless steel, steel, titanium alloy. Series 5510.
Specifications
Coating finishFIREX
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size0.5512
Drill bit size range0.5000 to 0.6000
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)60.00
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth (mm)57.00
Overall length4.2126
Point typeSU
Primary workpiece materialBrass; Cast Iron; Hardened Materials; Nickel Alloy; Stainless Steel; Steel; Titanium Alloy
Shank diameter0.5512
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
